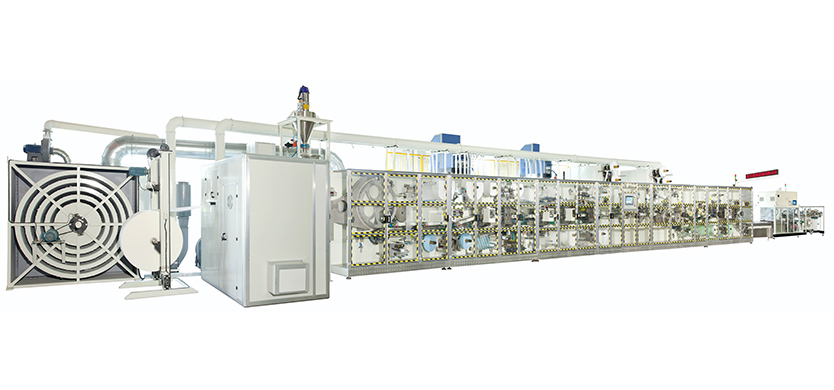

Sanitary Napkin Production Line
Main Technical Data
Raw material specifications
|
Working Speed(Production speed) |
500pcs~800pcs/minute |
|
Working Speed(Linear web speed) |
Up to 220meters/minute |
|
Power supply |
380V 50HZ, Tri-phase |
|
Installation power capacity |
185~220KW |
|
Air consumption |
1800~4800l/minute |
|
Qualified rate |
≥98% |
|
Product width(min~max, for sanitary napkin) |
80~175mm |
|
Product length(min~max, for sanitary napkin) |
200~380mm |
|
Dimensions(L×W×H, Meters) |
L: 22~25 W: 4~6 H: 3~4.5 |
|
Technical features Compact design, easy operation&maintenance Modular design, for future upgrading Low consumption, high efficiency Servo or frequency inverter transmission Touch screen for man-machine conversation Auto record and calculation of process data Main raw material auto splicing at zero speed Inverter or servo unwinding with tension control Web guiding controller Sensor quality control systems Material broken and lost inspection, auto machine stop and defective products auto rejection Easy size changing and manufacture CE approval |
Basic process configuration: High speed pulverizer(untreated pulp is allowed) Fluff forming unit SAP dosing unit Raw material feeding units Inner cutter Unit Edge crimping unit Product 180°turnover Product 90°transverse turning unit Final cutter unit Pouch film Application unit Air application unit Safety protection unit |
Optional process configurations: Aloe/perfume application unit Gravimetric SAP dosing unit Camera quality detection unit |
|
Item Number |
Raw material layer(straight type fluff core) |
|
1 |
Hydrophilic N.W.(for top sheet) |
|
2 |
Fluff core pad |
|
3 |
SAP(super absorbent polymer) |
|
4 |
Lower tissue |
|
5 |
Back sheet PE |
|
6 |
Back release paper |
|
7 |
Pouch film |
|
8 |
Easy tape |
|
9 |
ADL N.W.(Option) |
|
Options(Straight type Ultrathin,) |
|
|
10 |
Air laid paper |
|
11 |
SAP Paper |
|
Options(with wing) |
|
|
12 |
Wing release paper |
|
Options(Fast & Easy Packing) |
|
|
13 |
Pouch film |
|
14 |
Easy tape |
|
Options(for three pieces laminations) |
|
|
15 |
Hydrophobic N.W. |
|
Options(for three pieces laminations) |
|
|
16 |
Leak Elastic(For standing cuff) |
